Flash Builder 4 and PHP Data/Services for beginners

Flash Builder 4 and PHP
Data/Services for beginners

November 6th, 2009

Flash Builder 4 logo Application that you create in Flex 4 uses PHP and MySQL database. It shows the most simple and the most recent approach for working with data in Flash Builder 4/Flex 4. Basically it’s just a few clicks, which generate the necessary code. We use Flash Builder 4 Beta 2 introduced at MAX 2009.

This tutorial provides a base for working with data in Flex 4 - to understand the deeper options I recommend PHP and Flex tutorial by my fellow evangelist MIHAI CORLAN Flex for PHP developers [en].

Note: This article is English translation of my Czech article published at Zdrojak.root.cz - Jak na to: Spojení Flex 4 a PHP ve Flash Builderu 4 [cz]. It can contain some Czech titles or texts in demos, just disregard and use what fits you the best.

Required software

HTTP, PHP 5, MySQL 5 server (e.g. for Mac MAMP, for Win WAMP)
Flash Builder 4 Beta 2
Flash Player 10 (installed with Flash Builder 4)
Optional Zend Framework (if you do not have him Flash Builder will install itself 4)

Finished app (source code can be displayed using the View Source context menu in the application)

Source-code

Flex a PHP (just for check)
Employee database in SQL (you need this, we will search in it)

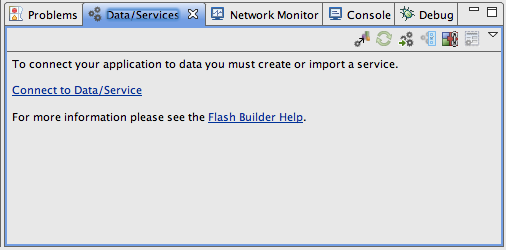

Data/Services panel

Flash Builder 4 introduced Data/Services panel, which simplifies working with data services like Web Services, PHP, ColdFusion, Java (Blaze DS, LiveCycle DS) or simple HTTPService.

Data/Services panel significantly speeds up the overall development of RIA applications. Manages connections with data and separates the code to work with services from your code. This approach allows you to create a RIA as E-shop a few days and with the administration.

Along with Data/Services there is a new Network Monitor panel for debugging and monitoring request/response data transfer between client and server.

Step 1 - Create a project in Flash Builder 4

File -> New -> Flex Project

Flex a PHP - nove

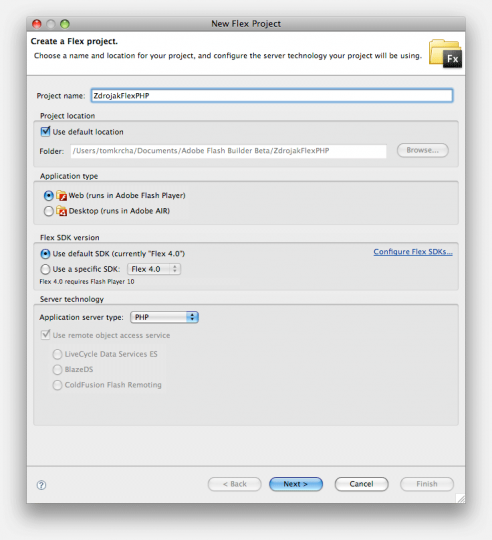

Enter the name of the project “ZdrojakFlexPHP, select Application server type “PHP” and click Next.

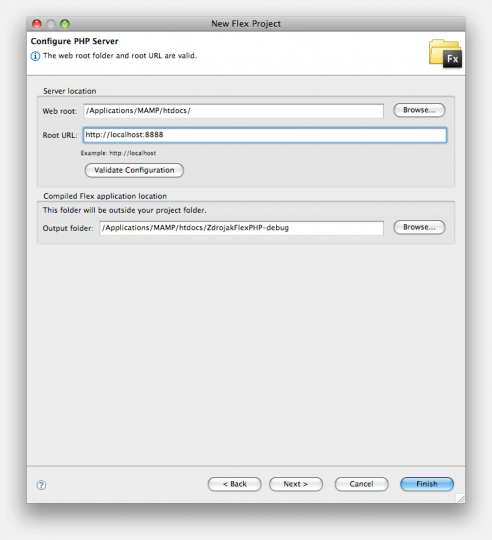

Make sure the HTTP server is running, set the Web root which is the root folder for the Web server. Also, set the Root URL - the address targeting Web root - and click Validate Configuration.

Leave the default settings in Compiled Flex application location and click Finish.

Flex a PHP - nove

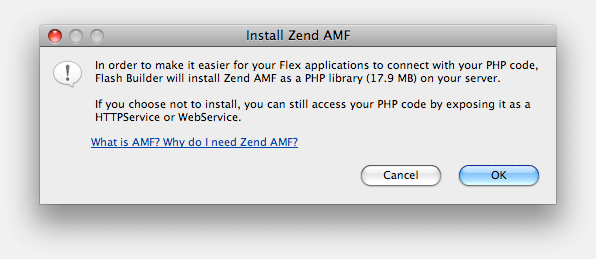

If you haven’t Zend_AMF installed on your server, Flash Builder 4 will offer you to install it. Click OK.

Following code is generated. Declarations block contains services.

<?xml version="1.0" encoding="utf-8"?>
<s:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
			   xmlns:s="library://ns.adobe.com/flex/spark"
			   xmlns:mx="library://ns.adobe.com/flex/halo" minWidth="1024" minHeight="768">
	<fx:Declarations>
		<!-- Place non-visual elements (e.g., services, value objects) here -->
	</fx:Declarations>
</s:Application>

Step 2 - Add data service

V panelu Data/Services klikneme na Connect to Data/Service.

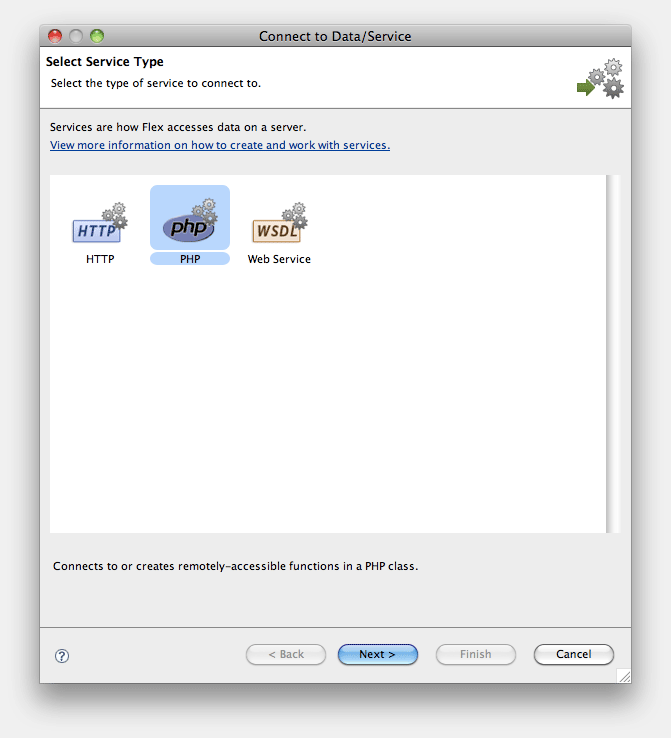

Choose PHP a click Next.

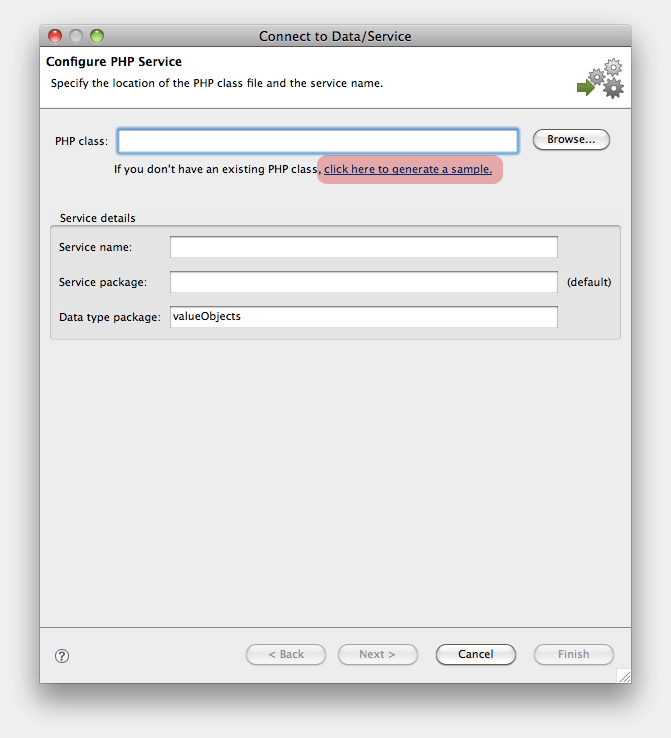

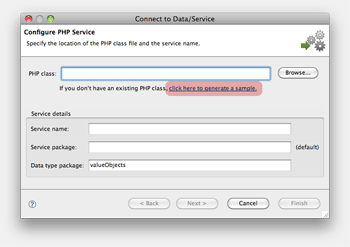

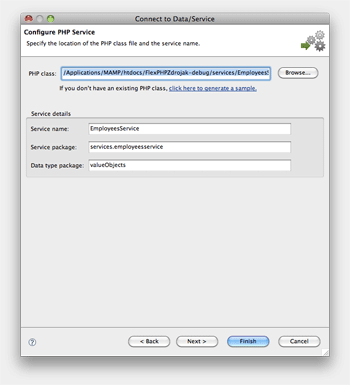

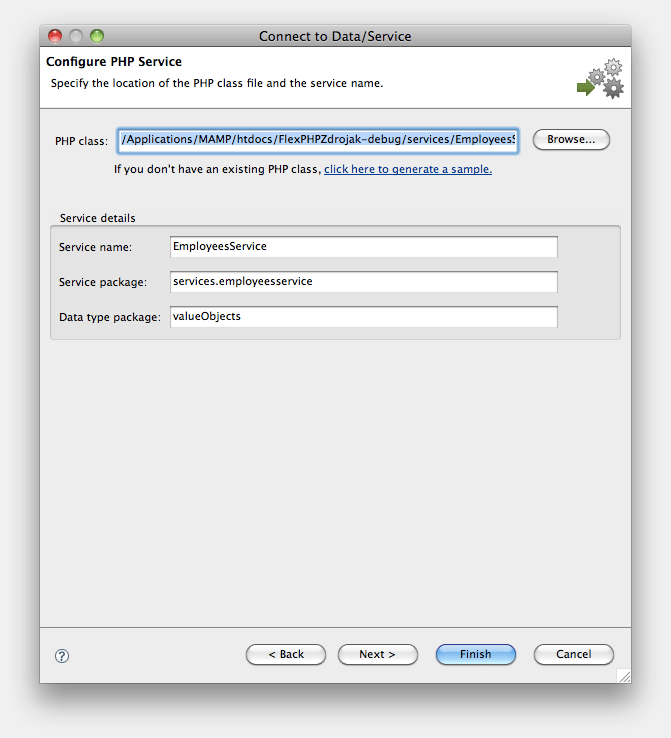

Click Generate sample PHP class.

Flash Builder 4 can generate PHP backend classes without writing a single line of code. Simply connect to the database and select the target table. It automatically generates class with all the basic functions according to the CRUD methodology (Create Read Update Delete). This step greatly simplifies the overall connection.

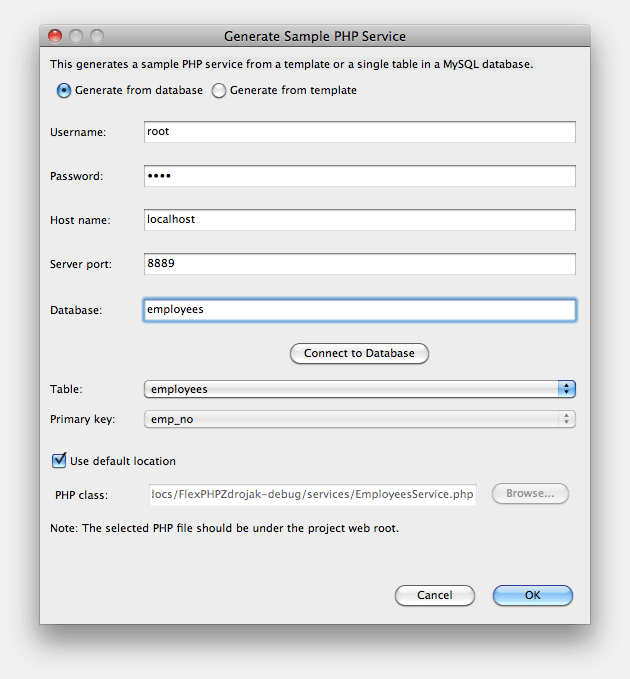

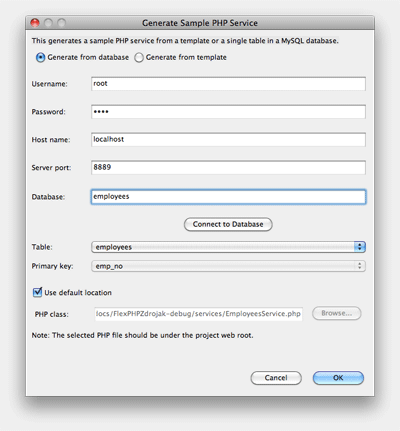

Fill in your access data. Click Connect to Database - available tables load up. Select table employees. Primary key emp_no should be chosen automatically. Click OK.

Security Information warns you with steps you should follow, when releasing production version. Click OK.

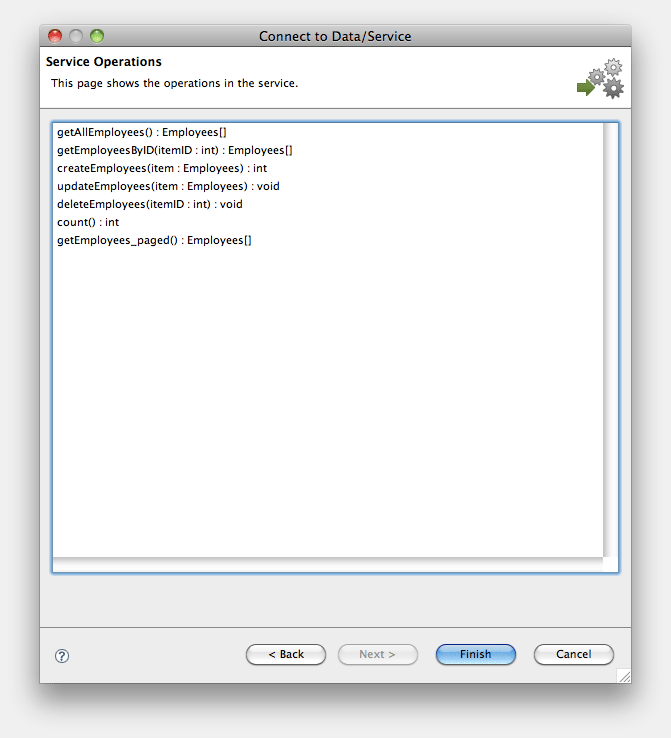

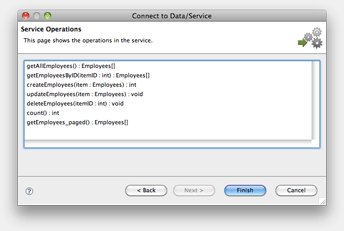

Click Next. The following screen displays a list of available services, including functions and return types. Click Finish.

EmployeesService has been added to Data/Services panel. Together with this you can find EmployeesService.php on the server (in services folder) containing the following features:

__construct - establish connection
getAllIEmployees - returns all employees
getEmployeesByID - returns an employee
createEmployees - creates an employee
updateEmployees - updates an employee
deleteEmployees - deletes an employee
count - returns count of all employees
getEmployees_paged - returns employees with paging support - check ListPaged component

The code is set and ready to use. Just make few adjustments to getAllEmployees function (in EmployeesService.php) to enable database search (parameter $q).

public function getAllEmployees($q) {

    $sql = "SELECT * FROM $this->tablename WHERE first_name LIKE '%$q%' OR last_name LIKE '%$q%' OR email_address LIKE '%$q%'";

    $stmt = mysqli_prepare($this->connection,$sql);

    $this->throwExceptionOnError();

    mysqli_stmt_execute($stmt);
    $this->throwExceptionOnError();

    $rows = array();

    mysqli_stmt_bind_result($stmt, $row->emp_no, $row->birth_date, $row->first_name, $row->last_name, $row->gender, $row->hire_date, $row->phone_no, $row->email_address, $row->job_title);

    while (mysqli_stmt_fetch($stmt)) {
      $rows[] = $row;
      $row = new stdClass();
      mysqli_stmt_bind_result($stmt, $row->emp_no, $row->birth_date, $row->first_name, $row->last_name, $row->gender, $row->hire_date, $row->phone_no, $row->email_address, $row->job_title);
    }

    mysqli_stmt_free_result($stmt);
    mysqli_close($this->connection);

    return $rows;
}

PHP is ready now.

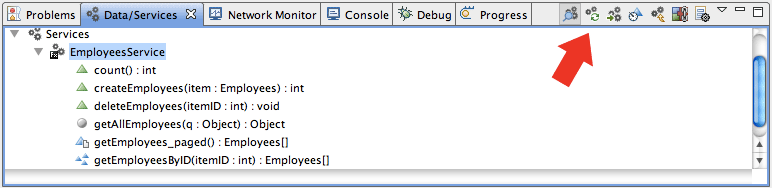

Let’s move to Flash Builder and refresh the service using Refresh button. The changes will apply. Function getAllEmployees should now accept search string parameter q:Object.

After restoring we have to set the correct return type. We

After refreshing we have to set the correct return type. Invoke the context menu on getAllEmployees, select Configure Return Type -> Use an existing data type from the drop-down box select the field staff - Employees[].

Step 3 - Create Flex UI for search

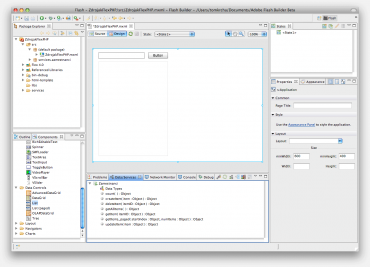

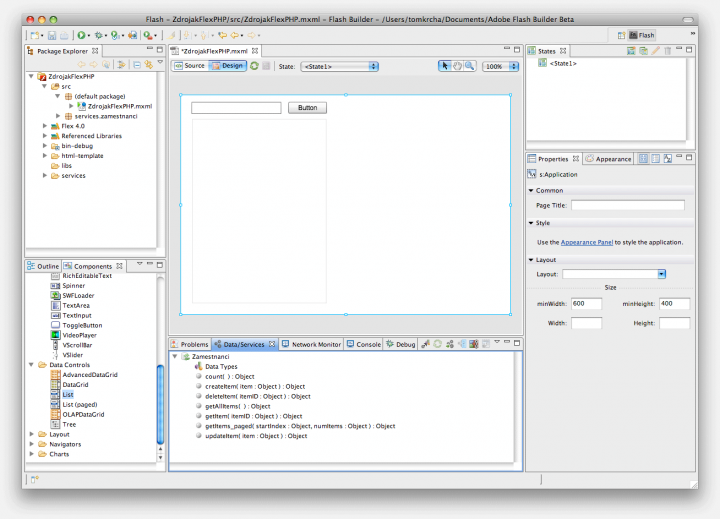

Lay out components List, TextInput and Button as on following figure and assign them the following ids: listSearch, txtSearch, btnSearch

Drag getAlllEmployees from Data/Services panel and drop it on Button (btnSearch) - directly in Design view. This action generates an event handler with a service call. Instead of q pass txtSearch.text.

protected function btnSearch_clickHandler(event:MouseEvent):void
{
    getAllEmployeesResult.token = employeesService.getAllEmployees(txtSearch.text);
}

We have to bind search result to the list listSearch using dataProvider. Braces represent binding - if [Bindable] variable changes, the changes are automatically reflected. At the same time set the labelField to last_name. You can play with better label representation by adjusting labelFunction and itemRenderer - recommended to explore. Also note that we are working with lastResult - or the last result of the call.

<s:List x="10" y="40" width="280" height="329" id="listSearch" dataProvider="{getAllEmployeesResult.lastResult}" labelField="last_name"></s:List>

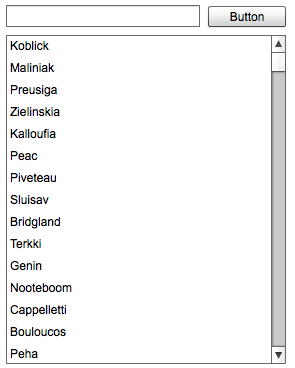

Test the app, if it does, what it is supposed to. It should look like this:

Flex a PHP

Step 4 - items edit

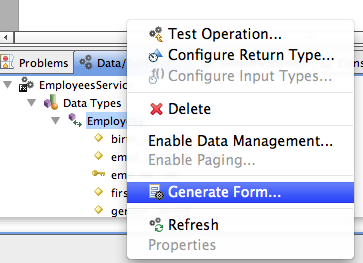

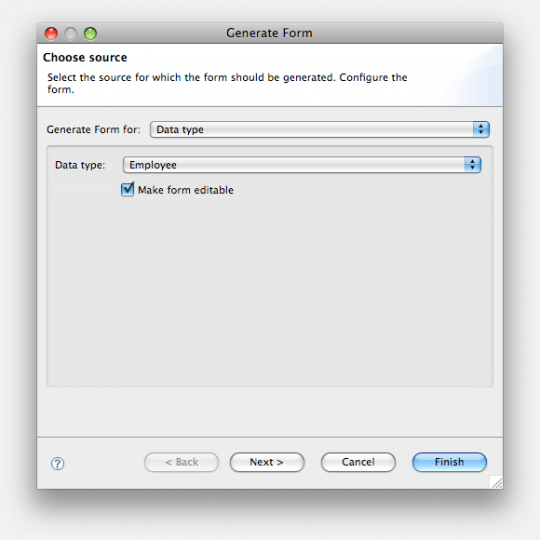

Move to Data/Services panel, invoke context menu on type Employee and choose Generate Form…

Leave Make form editable checked and go Next.

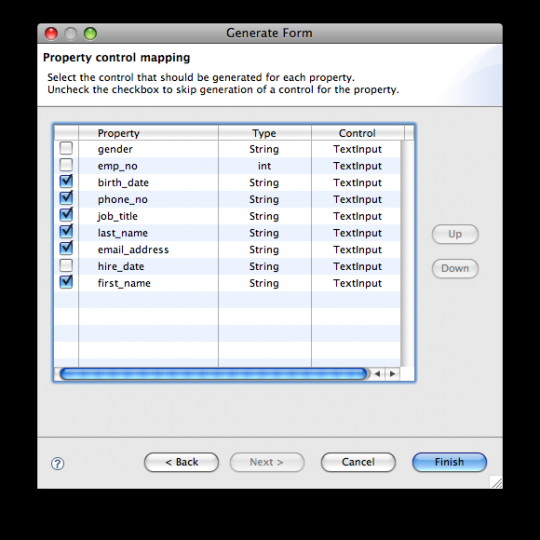

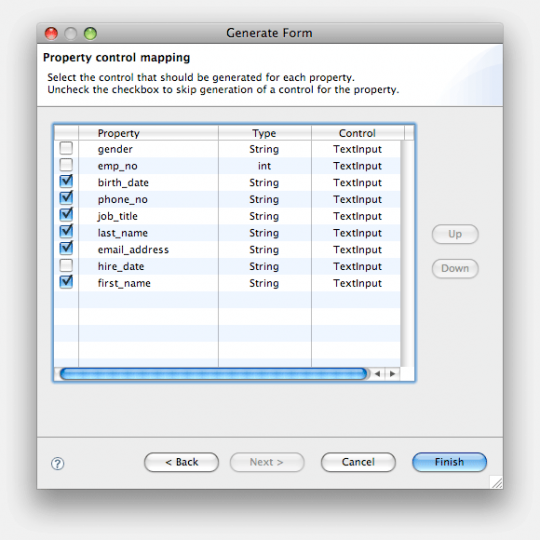

Choose items, you want to keep visible/editable and click Finish.

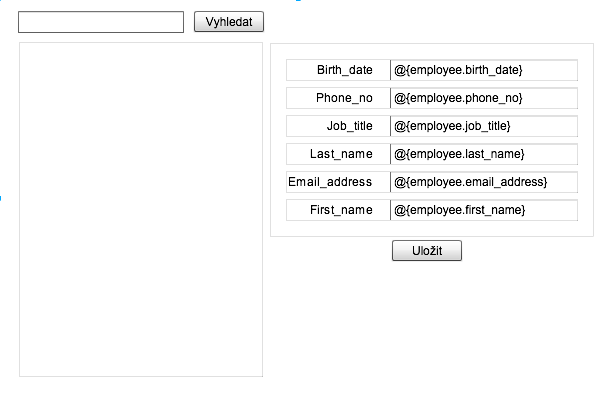

The form is generated, take it and move it right. Add Save button (btnSave) and retitle the first button to Search

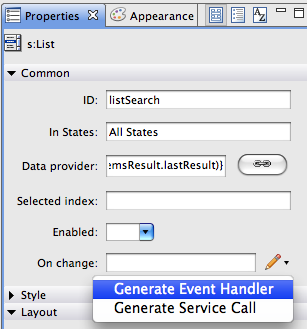

Similar way we add handler On change to the List (listSearch)

Flex a PHP

employee variable is set choosing an item from the list. Final code:

protected function listSearch_selectionChangedHandler(event:IndexChangedEvent):void
{
    employees = listSearch.selectedItem;
}

Step 5 - Save update

Drag-and-drop updateEmployee from Data/Services to btnSave. Change item to employee and thanks to two-way binding we have fully-editable of the item. Handler should look like this:

protected function btnSave_clickHandler(event:MouseEvent):void
{
    updateEmployeesResult.token = employeesService.updateEmployees(employees);
}

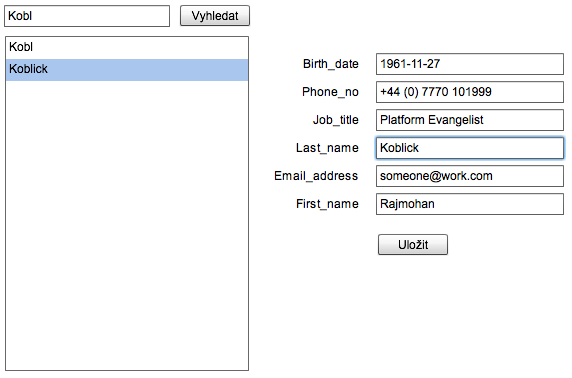

Final app preview:
